RFCI窄波段S、C、X波段和Ku波段法蘭安裝隔離器

發布時間：2025-11-20 13:55:05 瀏覽：286

RFCI是一家專業生產射頻(RF)環行器和隔離器的公司，產品覆蓋了從50 MHz到20 GHz的頻率范圍，廣泛應用于通信和無線基礎設施。深圳市立維創展科技有限公司優勢代理銷售RFCI產品，歡迎咨詢了解。

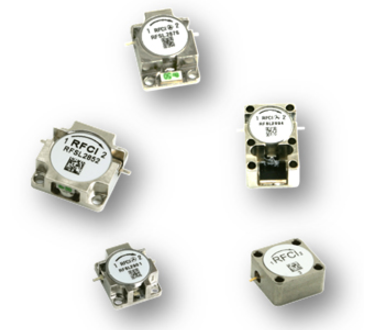

RFCI窄波段S、C、X波段和Ku波段法蘭安裝隔離器

Part Number	Frequency Range		Insertion Loss	Isolation	Return Loss	Forward Power p	Rev Power	Operating Temperature	Package Outline
Part Number	Frequency Range		(dB)	(dB)	(dB)	CW (W)	CW (W)	Operating Temperature	Package Outline
	Low	High	Room/OT	Room/OT	Room/OT			(oC)	Figure
RFSL2852	2500	2700	0.20/0.30	25/22	25/22	1000/100	20	-40 to +85°C	DI-21
RFSL2817	2700	3300	0.30/0.40	23/20	23/20	1000/100	20	-40 to +85°C	DI-21
RFSL2854	2700	2900	0.20/0.30	25/22	25/22	1000/100	20	-40 to +85°C	DI-21
RFSL2856	2900	3500	0.30/0.40	23/20	23/20	1000/100	20	-40 to +85°C	DI-21
RFSL2855	2900	3100	0.20/0.30	25/22	25/22	1000/100	20	-40 to +85°C	DI-21
RFSL2857	3000	3500	0.25/0.35	23/20	23/20	1000/100	20	-40 to +85°C	DI-21
RFSL2859	3300	3800	0.25/0.35	23/20	23/20	1000/100	20	-40 to +85°C	DI-21
RFSL2858	3300	3500	0.20/0.30	25/22	25/22	1000/100	20	-40 to +85°C	DI-21
RFSL2873	3400	4200	0.30/0.40	23/20	23/20	500/50	20	-20 to +85°C	DI-21
RFSL2860	3400	3700	0.20/0.30	25/22	25/22	1000/100	20	-40 to +85°C	DI-21
RFSL2874	3500	4300	0.30/0.40	23/20	23/20	500/50	20	-20 to +85°C	DI-21
RFSL2861	3600	3800	0.20/0.30	25/22	25/22	1000/100	20	-40 to +85°C	DI-21
RFSL2852-T100	2500	2700	0.20/0.30	25/22	25/22	1000/100	100	-40 to +85°C	DI-22
RFSL2817-T100	2700	3300	0.30/0.40	23/20	23/20	1000/100	100	-40 to +85°C	DI-22
RFSL2854-T100	2700	2900	0.20/0.30	25/22	25/22	1000/100	100	-40 to +85°C	DI-22
RFSL2856-T100	2900	3500	0.30/0.40	23/20	23/20	1000/100	100	-40 to +85°C	DI-22
RFSL2855-T100	2900	3100	0.20/0.30	25/22	25/22	1000/100	100	-40 to +85°C	DI-22
RFSL2857-T100	3000	3500	0.25/0.35	23/20	23/20	1000/100	100	-40 to +85°C	DI-22
RFSL2859-T100	3300	3800	0.25/0.35	23/20	23/20	1000/100	100	-40 to +85°C	DI-22
RFSL2858-T100	3300	3500	0.20/0.30	25/22	25/22	1000/100	100	-40 to +85°C	DI-22
RFSL2860-T100	3400	3700	0.20/0.30	25/22	25/22	1000/100	100	-40 to +85°C	DI-22
RFSL2861-T100	3600	3800	0.20/0.30	25/22	25/22	1000/100	100	-40 to +85°C	DI-22
RFSL2852D	2500	2700	0.20/0.30	25/22	25/22	1000/100	20	-40 to +85°C	DI-23
RFSL2817D	2700	3300	0.30/0.40	23/20	23/20	1000/100	20	-40 to +85°C	DI-23
RFSL2854D	2700	2900	0.20/0.30	25/22	25/22	1000/100	20	-40 to +85°C	DI-23
RFSL2856D	2900	3500	0.30/0.40	23/20	23/20	1000/100	20	-40 to +85°C	DI-23
RFSL2855D	2900	3100	0.20/0.30	25/22	25/22	1000/100	20	-40 to +85°C	DI-23
RFSL2857D	3000	3500	0.25/0.35	23/20	23/20	1000/100	20	-40 to +85°C	DI-23
RFSL2859D	3300	3800	0.25/0.35	23/20	23/20	1000/100	20	-40 to +85°C	DI-23
RFSL2858D	3300	3500	0.20/0.30	25/22	25/22	1000/100	20	-40 to +85°C	DI-23
RFSL2860D	3400	3700	0.20/0.30	25/22	25/22	1000/100	20	-40 to +85°C	DI-23
RFSL2861D	3600	3800	0.20/0.30	25/22	25/22	1000/100	20	-40 to +85°C	DI-23
RFSL2852D-T100	2500	2700	0.20/0.30	25/22	25/22	1000/100	100	-40 to +85°C	DI-24
RFSL2817D-T100	2700	3300	0.30/0.40	23/20	23/20	1000/100	100	-40 to +85°C	DI-24
RFSL2854D-T100	2700	2900	0.20/0.30	25/22	25/22	1000/100	100	-40 to +85°C	DI-24
RFSL2856D-T100	2900	3500	0.30/0.40	23/20	23/20	1000/100	100	-40 to +85°C	DI-24
RFSL2855D-T100	2900	3100	0.20/0.30	25/22	25/22	1000/100	100	-40 to +85°C	DI-24
RFSL2857D-T100	3000	3500	0.25/0.35	23/20	23/20	1000/100	100	-40 to +85°C	DI-24
RFSL2859D-T100	3300	3800	0.25/0.35	23/20	23/20	1000/100	100	-40 to +85°C	DI-24
RFSL2858D-T100	3300	3500	0.20/0.30	25/22	25/22	1000/100	100	-40 to +85°C	DI-24
RFSL2860D-T100	3400	3700	0.20/0.30	25/22	25/22	1000/100	100	-40 to +85°C	DI-24
RFSL2861D-T100	3600	3800	0.20/0.30	25/22	25/22	1000/100	100	-40 to +85°C	DI-24
RFSL2945-T2	3600	4200	0.35/0.50	20/19	20/19	500/35	2	-40 to +85°C	DI-28
RFSL2921-T2	3600	3800	0.25/0.35	23/20	23/20	500/35	2	-40 to +85°C	DI-28
RFSL2886-T2	4000	4700	0.30/0.40	23/20	23/20	500/35	2	-40 to +85°C	DI-28
RFSL2875-T2	4200	4400	0.30/0.35	23/20	23/20	500/35	2	-40 to +85°C	DI-28
RFSL2876-T2	4400	5000	0.30/0.35	23/20	23/20	500/35	2	-40 to +85°C	DI-28
RFSL2887-T2	4700	5200	0.30/0.35	23/20	23/20	500/35	2	-40 to +85°C	DI-28
RFSL2877-T2	4900	6100	0.30/0.40	23/20	23/20	500/35	2	-40 to +85°C	DI-28
RFSL2878-T2	5000	6500	0.45/0.50	23/20	23/20	500/35	2	-40 to +85°C	DI-28
RFSL2879-T2	5400	5900	0.30/0.35	22/20	22/20	500/35	2	-40 to +85°C	DI-28
RFSL2940-T2	5800	7100	0.35/0.40	21/20	21/20	500/35	2	-40 to +85°C	DI-28
RFSL2880-T2	5800	6700	0.35/0.40	22/20	22/20	500/35	2	-40 to +85°C	DI-28
RFSL2881-T2	6400	7200	0.35/0.40	22/20	22/20	500/35	2	-40 to +85°C	DI-28
RFSL2882-T2	6500	8500	0.45/0.50	22/20	22/20	500/35	2	-40 to +85°C	DI-28
RFSL2941-T2	7000	8000	0.30/0.35	22/20	22/20	500/35	2	-40 to +85°C	DI-28
RFSL2883-T2	7200	8400	0.30/0.35	23/20	23/20	500/35	2	-40 to +85°C	DI-28
RFSL2942-T2	7700	8800	0.35/0.40	21/20	21/20	500/35	2	-40 to +85°C	DI-28
RFSL2884-T2	8300	8800	0.35/0.35	23/20	23/20	500/35	2	-40 to +85°C	DI-28
RFSL2885-T2	9000	9600	0.30/0.40	23/20	23/20	500/35	2	-40 to +85°C	DI-28
RFSL2892-T2	9200	9800	0.30/0.40	23/20	23/20	500/35	2	-40 to +85°C	DI-28
RFSL2901	8000	10500	0.35/0.50	22/18	22/18	500/35	2	-40 to +85°C	DI-28
RFSL2946	9000	11000	0.45/0.50	22/19	22/19	500/35	2	-40 to +85°C	DI-28
RFSL2943	10000	11700	0.35/0.40	21/20	21/20	500/35	2	-40 to +85°C	DI-28
RFSL2944	12000	15000	0.40/0.50	21/19	21/19	500/25	2	-40 to +85°C	DI-28
RFSL2945	3600	4200	0.35/0.50	20/19	20/19	500/35	20	-40 to +85°C	DI-29
RFSL2921	3600	3800	0.25/0.35	23/20	23/20	500/35	20	-40 to +85°C	DI-29
RFSL2886	4000	4700	0.30/0.40	23/20	23/20	500/35	20	-40 to +85°C	DI-29
RFSL2875	4200	4400	0.30/0.35	23/20	23/20	500/35	20	-40 to +85°C	DI-29
RFSL2876	4400	5000	0.30/0.35	23/20	23/20	500/35	20	-40 to +85°C	DI-29
RFSL2887	4700	5200	0.30/0.35	23/20	23/20	500/35	20	-40 to +85°C	DI-29
RFSL2877	4900	6100	0.30/0.40	23/20	23/20	500/35	20	-40 to +85°C	DI-29
RFSL2878	5000	6500	0.45/0.50	23/20	23/20	500/35	20	-40 to +85°C	DI-29
RFSL2879	5400	5900	0.30/0.35	22/20	22/20	500/35	20	-40 to +85°C	DI-29
RFSL2940	5800	7100	0.35/0.40	21/20	21/20	500/35	20	-40 to +85°C	DI-29
RFSL2880	5800	6700	0.35/0.40	22/20	22/20	500/35	20	-40 to +85°C	DI-29
RFSL2881	6400	7200	0.35/0.40	22/20	22/20	500/35	20	-40 to +85°C	DI-29
RFSL2882	6500	8500	0.45/0.50	22/20	22/20	500/35	20	-40 to +85°C	DI-29
RFSL2941	7000	8000	0.35/0.40	22/20	22/20	500/35	20	-40 to +85°C	DI-29
RFSL2883	7200	8400	0.30/0.35	23/20	23/20	500/35	20	-40 to +85°C	DI-29
RFSL2942	7700	8800	0.35/0.40	21/20	21/20	500/35	20	-40 to +85°C	DI-29
RFSL2884	8300	8800	0.35/0.35	23/20	23/20	500/35	20	-40 to +85°C	DI-29
RFSL2885	9000	9600	0.30/0.40	23/20	23/20	500/35	20	-40 to +85°C	DI-29
RFSL2892	9200	9800	0.30/0.40	23/20	23/20	500/35	20	-40 to +85°C	DI-29
RFSL2945D	3600	4200	0.40/0.50	20/19	20/19	500/35	10	-40 to +85°C	DI-27
RFSL2921D	3600	3800	0.25/0.35	23/20	23/20	500/35	10	-40 to +85°C	DI-27
RFSL2886D	4000	4700	0.30/0.40	23/20	23/20	500/35	10	-40 to +85°C	DI-27
RFSL2875D	4200	4400	0.30/0.35	23/20	23/20	500/35	10	-40 to +85°C	DI-27
RFSL2876D	4400	5000	0.30/0.35	23/20	23/20	500/35	10	-40 to +85°C	DI-27
RFSL2887D	4700	5200	0.30/0.35	23/20	23/20	500/35	10	-40 to +85°C	DI-27
RFSL2877D	4900	6100	0.30/0.40	23/20	23/20	500/35	10	-40 to +85°C	DI-27
RFSL2878D	5000	6500	0.45/0.50	20/17	20/17	500/35	10	-40 to +85°C	DI-27
RFSL2879D	5400	5900	0.30/0.35	22/20	22/20	500/35	10	-40 to +85°C	DI-27
RFSL2940D	5800	7100	0.35/0.40	21/20	21/20	500/35	10	-40 to +85°C	DI-27
RFSL2880D	5800	6700	0.35/0.40	22/20	22/20	500/35	10	-40 to +85°C	DI-27
RFSL2881D	6400	7200	0.35/0.40	22/20	22/20	500/35	10	-40 to +85°C	DI-27
RFSL2882D	6500	8500	0.45/0.50	22/20	22/20	500/35	10	-40 to +85°C	DI-27
RFSL2941D	7000	8000	0.35/0.40	22/20	22/20	500/35	10	-40 to +85°C	DI-27
RFSL2883D	7200	8400	0.30/0.35	23/20	23/20	500/35	10	-40 to +85°C	DI-27
RFSL2942D	7700	8800	0.35/0.40	21/20	21/20	500/35	10	-40 to +85°C	DI-27
RFSL2901D	8000	10500	0.35/0.50	22/18	22/18	500/35	5	-40 to +85°C	DI-27
RFSL2884D	8300	8800	0.35/0.35	23/20	23/20	500/35	10	-40 to +85°C	DI-27
RFSL2885D	9000	9600	0.30/0.40	23/20	23/20	500/35	10	-40 to +85°C	DI-27
RFSL2892D	9200	9800	0.30/0.40	23/20	23/20	500/35	10	-40 to +85°C	DI-27
RFSL2946D	9000	1100	0.45/0.50	22/19	22/19	500/35	5	-40 to +85°C	DI-27
RFSL2943D	10000	11700	0.35/0.40	21/20	21/20	500/35	5	-40 to +85°C	DI-27
RFSL2944D	12000	15000	0.40/0.50	21/19	21/19	500/35	5	-40 to +85°C	DI-27
RFSL2945D-T40	3600	4200	0.40/0.50	20/19	20/19	500/50	40	-40 to +85°C	DI-30
RFSL2921D-T40	3600	3800	0.30/0.40	22/20	23/20	500/50	40	-40 to +85°C	DI-30
RFSL2886D-T40	4000	4700	0.35/0.45	21/20	23/20	500/50	40	-40 to +85°C	DI-30
RFSL2875D-T40	4200	4400	0.35/0.40	21/20	23/20	500/50	40	-40 to +85°C	DI-30
RFSL2876D-T40	4400	5000	0.35/0.40	21/20	23/20	500/50	40	-40 to +85°C	DI-30
RFSL2887D-T40	4700	5200	0.40/0.50	21/20	23/20	500/50	40	-40 to +85°C	DI-30
RFSL2877D-T40	4900	6100	0.40/0.50	21/20	23/20	500/50	40	-40 to +85°C	DI-30
RFSL2878D-T40	5000	6500	0.50/0.60	18/17	20/17	500/50	40	-40 to +85°C	DI-30
RFSL2879D-T40	5400	5900	0.40/0.50	21/20	22/20	500/50	40	-40 to +85°C	DI-30
RFSL2940D-T40	5800	7100	0.40/0.50	21/20	21/20	500/50	40	-40 to +85°C	DI-30
RFSL2880D-T40	5800	6700	0.40/0.50	20/19	22/20	500/50	40	-40 to +85°C	DI-30
RFSL2881D-T40	6400	7200	0.40/0.50	20/19	22/20	500/50	40	-40 to +85°C	DI-30
