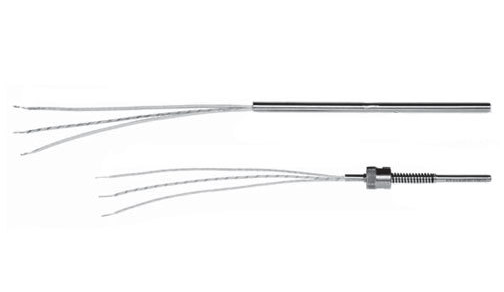

Minco S73PB120Z36高溫RTD溫度探頭
發布時間：2026-01-13 09:01:23 瀏覽：163
Minco S73系列是專為高溫環境設計的 RTD
探頭，具有堅固的結構，適用于蒸汽管道、排氣系統以及其他工業高溫應用。該型號通常采用卡口式(Bayonet)安裝方式，便于快速安裝和緊密接觸。
核心技術參數
型號 (Part Number): S73PB120Z36
傳感器類型: 鉑電阻 (Platinum RTD)，單元件。
阻值 (Resistance): 100 Ω ±0.1% (@ 0°C)。
溫度系數 (TCR): 0.00391 Ω/Ω/°C(這是 Minco 特有的高精度鉑元素標準之一)。
溫度范圍: 探頭端：-100°C 至 550°C (-148°F 至 1022°F)。
引線端：最高耐溫 500°C (392°F)。
引線配置: 3 線制(# Leads: 3)，有助于消除引線電阻帶來的誤差。
物理尺寸:
外殼直徑 (Case Diameter): 0.188 英寸(約 4.78 mm)。
探頭長度 (Length): 12.000 英寸(約 304.8 mm)。
引線長度 (Lead Length): 36 英寸(約 914 mm)。
壓力額定值: 1,500 psi (103 bar)。
工作環境適應性
能夠在惡劣工業場合穩定工作，如高溫?zé)煹馈⒄羝€等。
高溫下引線絕緣溫度最高可達約 500°C(392°F)。
典型應用場景
? 高溫過程監控
? 蒸汽與排氣系統
? 工業鍋爐與熱交換設備
? 石化和制造行業的溫度控制與自動化系統
型號參數
| Product | Type | Element Type | Resistance | TCR | Case Diameter (mm) | Length (mm) | # Leads | Lead Length (mm) |
| S91PD06G60Z120N | Straight probe | Platinum,Single | 100 Ω +0.06% at 0°C (Meets EN60751,Class A) | 0.00385 Ω/Ω/°C | 6.35 | 152.4 | 3 | 3,048 |
| S72PD120Z120 | Straight probe | Platinum,Single | 100 Ω +0.1% at 0°C (Meets EN60751,Class B) | 0.00385 Ω/Ω/°C | 4.78 | 304.8 | 3 | 3,048 |
| S72PD20Z36 | Straight probe | Platinum,Single | 100 Ω +0.1% at 0°C (Meets EN60751,Class B) | 0.00385 Ω/Ω/°C | 4.78 | 50.8 | 3 | 914 |
| S72PD30Z120 | Straight probe | Platinum,Single | 100 Ω +0.1% at 0°C (Meets EN60751,Class B) | 0.00385 Ω/Ω/°C | 4.78 | 76.2 | 3 | 3,048 |
| S73PB120Z120 | Bayonet probe | Platinum,Single | 100 Ω +0.1% at 0°C | 0.00391 Ω/Ω/°C | 4.78 | 304.8 | 3 | 3,048 |
| S73PB120Z36 | Bayonet probe | Platinum,Single | 100 Ω +0.1% at 0°C | 0.00391 Ω/Ω/°C | 4.78 | 304.8 | 3 | 914 |
| S73PB240Z120 | Bayonet probe | Platinum,Single | 100 Ω +0.1% at 0°C | 0.00391 Ω/Ω/°C | 4.78 | 609.6 | 3 | 3,048 |
| S73PB240Z36 | Bayonet probe | Platinum,Single | 100 Ω +0.1% at 0°C | 0.00391 Ω/Ω/°C | 4.78 | 609.6 | 3 | 914 |
| S74PD120Z120 | Bayonet probe | Platinum,Single | 100 Ω +0.1% at 0°C (Meets EN60751,Class B) | 0.00385 Ω/Ω/°C | 4.78 | 304.8 | 3 | 3,048 |
| S74PD120Z36 | Bayonet probe | Platinum,Single | 100 Ω +0.1% at 0°C (Meets EN60751,Class B) | 0.00385 Ω/Ω/°C | 4.78 | 304.8 | 3 | 914 |
| S74PD240Z120 | Bayonet probe | Platinum,Single | 100 Ω +0.1% at 0°C (Meets EN60751,Class B) | 0.00385 Ω/Ω/°C | 4.78 | 609.6 | 3 | 3,048 |
| S74PD240Z36 | Bayonet probe | Platinum,Single | 100 Ω +0.1% at 0°C (Meets EN60751,Class B) | 0.00385 Ω/Ω/°C | 4.78 | 609.6 | 3 | 914 |
| S80PB120Z120 | Cut-to-length | Platinum,Single | 100 Ω +0.1% at 0°C | 0.00391 Ω/Ω/°C | 6.35 | 304.8 | 3 | 3,048 |
| S80PB120Z36 | Cut-to-length | Platinum,Single | 100 Ω +0.1% at 0°C | 0.00391 Ω/Ω/°C | 6.35 | 304.8 | 3 | 914 |
| S80PB240Z120 | Cut-to-length | Platinum,Single | 100 Ω +0.1% at 0°C | 0.00391 Ω/Ω/°C | 6.35 | 609.6 | 3 | 3,048 |
| S80PB240Z36 | Cut-to-length | Platinum,Single | 100 Ω +0.1% at 0°C | 0.00391 Ω/Ω/°C | 6.35 | 609.6 | 3 | 914 |
| S81PD120Z120 | Cut-to-length | Platinum,Single | 100 Ω +0.1% at 0°C (Meets EN60751,Class B) | 0.00385 Ω/Ω/°C | 6.35 | 304.8 | 3 | 3,048 |
| S81PD120Z36 | Cut-to-length | Platinum,Single | 100 Ω +0.1% at 0°C (Meets EN60751,Class B) | 0.00385 Ω/Ω/°C | 6.35 | 304.8 | 3 | 914 |
| S81PD240Z120 | Cut-to-length | Platinum,Single | 100 Ω +0.1% at 0°C (Meets EN60751,Class B) | 0.00385 Ω/Ω/°C | 6.35 | 609.6 | 3 | 3,048 |
| S81PD240Z36 | Cut-to-length | Platinum,Single | 100 Ω +0.1% at 0°C (Meets EN60751,Class B) | 0.00385 Ω/Ω/°C | 6.35 | 609.6 | 3 | 914 |
| S91PD06G120Z120BS | Boot and spring | Platinum,Single | 100 Ω +0.06% at 0°C (Meets EN60751,Class A) | 0.00385 Ω/Ω/°C | 5.99 | 304.8 | 3 | 3,048 |
| S91PD06G120Z120N | Straight probe | Platinum,Single | 100 Ω +0.06% at 0°C (Meets EN60751,Class A) | 0.00385 Ω/Ω/°C | 5.99 | 304.8 | 3 | 3,048 |
| S91PD06G60Z120BS | Boot and spring | Platinum,Single | 100 Ω +0.06% at 0°C (Meets EN60751,Class A) | 0.00385 Ω/Ω/°C | 5.99 | 152.4 | 3 | 3,048 |
| S91PD06G60Z120N | Straight probe | Platinum,Single | 100 Ω +0.06% at 0°C (Meets EN60751,Class A) | 0.00385 Ω/Ω/°C | 5.99 | 152.4 | 3 | 3,048 |
| S91PD06G120Z120BS | Boot and spring | Platinum,Single | 100 Ω +0.06% at 0°C (Meets EN60751,Class A) | 0.00385 Ω/Ω/°C | 6.35 | 304.8 | 3 | 3,048 |
| S91PD06G120Z120N | Straight probe | Platinum,Single | 100 Ω +0.06% at 0°C (Meets EN60751,Class A) | 0.00385 Ω/Ω/°C | 6.35 | 304.8 | 3 | 3,048 |
| S91PD06G180Z120BS | Boot and spring | Platinum,Single | 100 Ω +0.06% at 0°C (Meets EN60751,Class A) | 0.00385 Ω/Ω/°C | 6.35 | 457.2 | 3 | 3,048 |
| S91PD06G180Z120N | Straight probe | Platinum,Single | 100 Ω +0.06% at 0°C (Meets EN60751,Class A) | 0.00385 Ω/Ω/°C | 6.35 | 457.2 | 3 | 3,048 |
| S91PD06G40Z120BS | Boot and spring | Platinum,Single | 100 Ω +0.06% at 0°C (Meets EN60751,Class A) | 0.00385 Ω/Ω/°C | 6.35 | 101.6 | 3 | 3,048 |
| S91PD06G40Z120N | Straight probe | Platinum,Single | 100 Ω +0.06% at 0°C (Meets EN60751,Class A) | 0.00385 Ω/Ω/°C | 6.35 | 101.6 | 3 | 3,048 |
| S91PD06G60Z120BS | Boot and spring | Platinum,Single | 100 Ω +0.06% at 0°C (Meets EN60751,Class A) | 0.00385 Ω/Ω/°C | 6.35 | 152.4 | 3 | 3,048 |
| S91PD06G90Z120BS | Boot and spring | Platinum,Single | 100 Ω +0.06% at 0°C (Meets EN60751,Class A) | 0.00385 Ω/Ω/°C | 6.35 | 228.6 | 3 | 3,048 |
| S91PD06G90Z120N | Straight probe | Platinum,Single | 100 Ω +0.06% at 0°C (Meets EN60751,Class A) | 0.00385 Ω/Ω/°C | 6.35 | 228.6 | 3 | 3,048 |
| S91PD06G120Z120BS | Boot and spring | Platinum,Single | 100 Ω +0.06% at 0°C (Meets EN60751,Class A) | 0.00385 Ω/Ω/°C | 4.78 | 304.8 | 3 | 3,048 |
| S91PD06G120Z120N | Straight probe | Platinum,Single | 100 Ω +0.06% at 0°C (Meets EN60751,Class A) | 0.00385 Ω/Ω/°C | 4.78 | 304.8 | 3 | 3,048 |
| S91PD06G60Z120BS | Boot and spring | Platinum,Single | 100 Ω +0.06% at 0°C (Meets EN60751,Class A) | 0.00385 Ω/Ω/°C | 4.78 | 152.4 | 3 | 3,048 |
| S91PD06G60Z120N | Straight probe | Platinum,Single | 100 Ω +0.06% at 0°C (Meets EN60751,Class A) | 0.00385 Ω/Ω/°C | 4.78 | 152.4 | 3 | 3,048 |
| S72PD60Y36 | Straight probe | Platinum,Single | 100 Ω +0.1% at 0°C (Meets EN60751,Class B) | 0.00385 Ω/Ω/°C | 4.78 | 152.4 | 3 | 914 |
Minco是專注于為嚴苛應用提供溫度傳感與控制、熱加熱、柔性電路及集成解決方案。其產品廣泛應用于醫療、航空航天、半導體、能源等多個行業。深圳市立維創展科技有限公司優勢分銷Minco產品，歡迎咨詢了解。
